CS20 Android 10.0 Mobile Smart POS

CS20 is High Performance Android Mobile Smart POS,it's landed on 1st Qualcomm Octa-Core Mobile Smart POS,has the Powerful Performance for Accelerating Business,Process Omni Payment Scenarios,Professional Scanner Zebra 4710 1D/2D head (optional)

CS20 Android 10.0 Mobile Smart POS

选择规格数量

请勾选您要的商品信息!

产品详情

CS20

1stQualcomm Octa-Core POS

High Performance Smart POS
for Portable Payment Scenario


Basic Characteristics

OS                       Safedroid OS (based on Android 10.0)

CPU                       Qualcomm Octa-Core ARM Cortex-A53 1.8GHz

ROM               16GB ROM EMMC

RAM               2G RAM LPDDR3

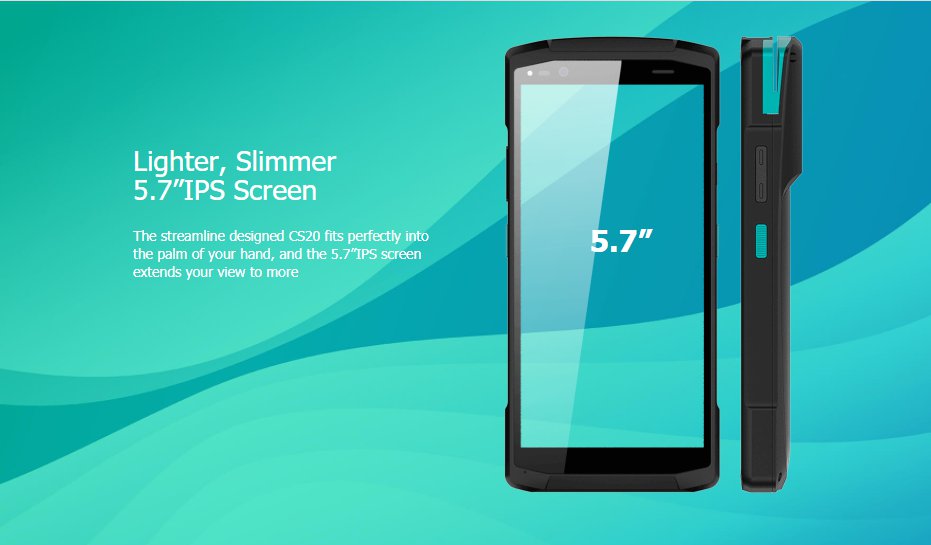

Display               5.7 inch TFT IPS LCD, resolution 720*1440

Panel               Ultra sensitive capacitive touch screen, can work with gloves and wet fingers

Dimensions       163mmX77mmX17.5mm (max 21.8mm)

Weight                       300g(Battery included)

Keys                       Physical keys: power on/off, Volume + /-, Scan1/ Scan2

Input                       Chinese/English, and supports handwriting and soft keyboard

Radio Communication

WIFI                        IEEE 802.11 b/g/n and a/c,support dual Band 2.4GHZ and 5GHZ

Bluetooth        BT 4.2 LE and earlier

4G                        European version(Default):FDD-LTE:B1/B3/B5/B7/B8/B20

                               TDD-LTE:B38/B39/B40/B41    American version(Optional):

                               FDD-LTE:B2/B4/B5/B12/B13/B17/B25/B26    TDD-LTE:B41

3G                        European version(Default):WCDMA:B1/B2/B5/B8  TD-SCDMA:B34/B39,

                               CDMA 1x/EVDO:BC0   American version(Optional):WCDMA:B2/B4/B5,

                               CDMA 1X/EVDO:BC1

2G                        GSM/GPRS/EDGE:850/900/1800/1900MHZ

Payment

Magcard reader         Supports ISO7811/7812/7813, and supports triple

                                        track (tracks 1/2/3), bi-directional

Smart Card reader         Supports ISO7816 standard

Contactless Card reade     Supports 14443A/ 14443B

Camera                         5MP camera with LED flash and auto-focus function

Satellite Positioning         Support GPS(A-GPS)/Bei-Dou/Glonass or Galileo

NFC                         13.56MHZ

Audio                         Speaker ,Microphone


Interfaces

Micro SD Card Slot           1 PCS support up to 128GB

SIM Card Slot         1 PCS MICRO SIM

PSAM Card Slot         2 PCS Conforms to ISO7816 standard

USB Port                         1 PCS TYPE C USB


Power

Battery                          Li-ion battery, 4.35V /3500mAH

Charging Port          Type C USB Port, 5V DC,2A


Environment

Operating Temperature     -10°C to 50°C

Storage Temperature         -20°C to 70°C

Humidity                          5% to 95% Relative Humidity, Non-Condensing


Certification

Electromagnetic          CE,Rohs,FCC,BIS,TQM

Payment                          PCI PTS 5.X, EMV L1&L2, Paypass, Paywave, Amex


Optional Modules

Fingerprint        (Extended support on the charging cradle)

Printer                         High-Speed Thermal Printer(Extended support on the charging cradle)

ESIM Card         support

Front camera         2 Megapixel Fixed Focal Camera

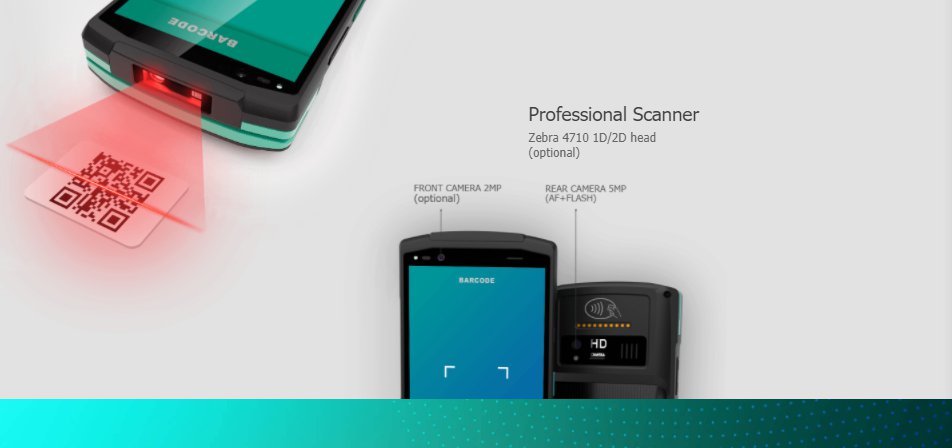

Barcode Scanner         Symbol 4710 2D Image Engine, Support 1D and 2D symbologies



Puowerful Performance for Accelerating Business


Process Omni Payment Scenarios

Superior Battery Life

The grand 4.35V/3500mAH battery + extraordinary power management design ensures a full day duration

Fits in Your Pocket

Durable,Solid and Grand View
